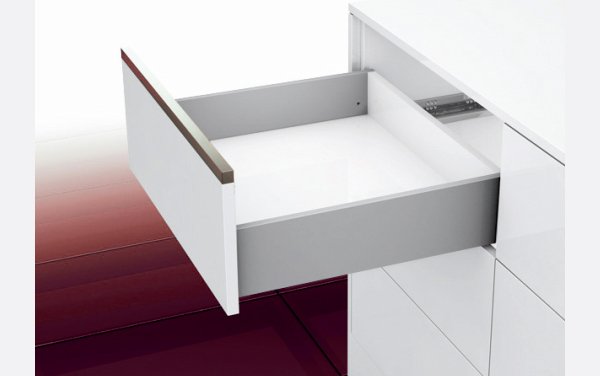

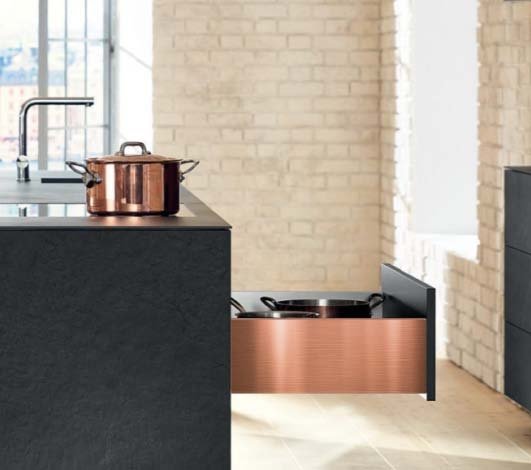

VIONARO Drawer System

VIONARO DRAWER H 63
  • 90° straight inside and outside
  • Slimline 13 mm wide drawer side
  • 3-dimensional adjustment
  • Integrated side and height adjustment,tilt angle adjustment at back
  • Plus and minus adjustment
  • Dynapro slide can be used for wooden and Vionaro drawers
  • Bottom panel machining not required
  • Tool-free front assembly
  • Tipmatic soft close (TMSC) is possible by installing the TMSC attachment

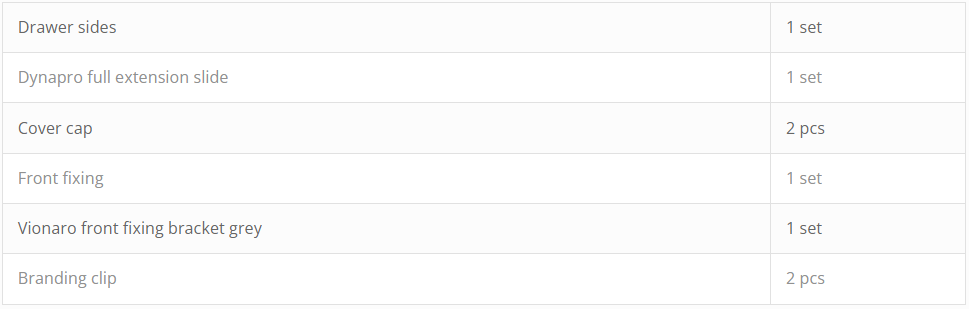

One set consists of :

Drawer sides
1 set
Dynapro full extension slide
1 set
Cover cap
2 pcs
Front fixing
2 pcs
Vionaro front fixing bracket grey
1 set
Branding clip
2 pcs

Soft-close 40 kg – Plain Drawer

NOMINAL LENGTH
GRAPHITE
SILVER GREY
T 450
006.068.01144
006.068.01178
T 500
006.068.01145
006.068.01179
T 550
006.068.01146
006.068.01180

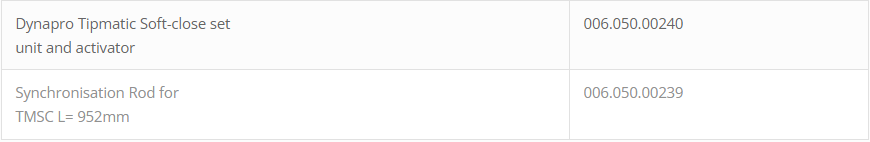

Optional TMSC

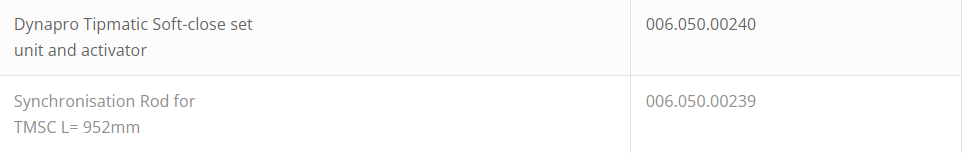

Dynapro Tipmatic Soft-close set unit and activator
006.050.00240
Synchronisation Rod for TMSC L= 952mm
006.050.00239
VIONARO Drawer H89
  • 90° straight inside and outside
  • Slimline 13 mm wide drawer side
  • 3-dimensional adjustment
  • Integrated side and height adjustment,tilt angle adjustment at back
  • Plus and minus adjustment
  • Dynapro slide can be used for wooden and Vionaro drawers
  • Bottom panel machining not required
  • Tool-free front assembly
  • Identical back panel connection for wooden and steel back panel
  • Tipmatic soft close (TMSC) is possible by installing the TMSC attachment

One set consists of :

Drawer sides
1 set
Dynapro full extension slide
1 set
Cover cap
2 pcs
Front fixing
2 pcs
Vionaro front fixing bracket grey
1 set
Branding clip
2 pcs

Soft-close 40 kg – Plain Drawer

NOMINAL LENGTH
GRAPHITE
SILVER GREY
T 300
006.068.01147
006.068.01181
T 350
006.068.01148
006.068.01182
T 400
006.068.01149
006.068.01183
T 450
006.068.01150
006.068.01184
T 500
006.068.01151
006.068.01185
T 550
006.068.01152
006.068.01186

Soft-close 70 kg – Plain Drawer

NOMINAL LENGTH
GRAPHITE
SILVER GREY
T 500
006.068.01153
006.068.01187
T 550
006.068.01154
006.068.01188
T 600
006.068.01155
006.068.01189
T 650
006.068.01156
006.068.01190

Optional TMSC

Dynapro Tipmatic Soft-close set unit and activator
006.050.00240
Synchronisation Rod for TMSC L= 952mm
006.050.00239
VIONARO Drawer H121
  • 90° straight inside and outside
  • Slimline 13 mm wide drawer side
  • 3-dimensional adjustment
  • Integrated side and height adjustment,tilt angle adjustment at back
  • Plus and minus adjustment
  • Dynapro slide can be used for wooden and Vionaro drawers
  • Bottom panel machining not required
  • Tool-free front assembly
  • Identical back panel connection for wooden and steel back panel
  • Tipmatic soft close (TMSC) is possible by installing the TMSC attachment

One set consists of :

Drawer sides
1 set
Dynapro full extension slide
1 set
Cover cap
2 pcs
Front fixing
2 pcs
Vionaro front fixing bracket grey
1 set
Branding clip
2 pcs

Soft-close 40 kg – Plain Drawer

NOMINAL LENGTH
GRAPHITE
SILVER GREY
T 350
006.068.01157
006.068.01191
T 400
006.068.01158
006.068.01192
T 450
006.068.01159
006.068.01193
T 500
006.068.01160
006.068.01194
T 550
006.068.01161
006.068.01195

Soft-close 70 kg – Plain Drawer

NOMINAL LENGTH
GRAPHITE
SILVER GREY
T 500
006.068.01162
006.068.01196
T 550
006.068.01163
006.068.01197

Optional TMSC

Dynapro Tipmatic Soft-close set unit and activator
006.050.00240
Synchronisation Rod for TMSC L= 952mm
006.050.00239
VIONARO Drawer H185
  • 90° straight inside and outside
  • Slimline 13 mm wide drawer side
  • 3-dimensional adjustment, Integrated side and height adjustment, tilt angle adjustment at back
  • Plus and minus adjustment
  • Dynapro slide can be used for wooden and Vionaro drawers
  • Bottom panel machining not required
  • Tool-free front assembly
  • Identical back panel connection for wooden and steel back panel
  • Tipmatic soft close (TMSC) is possible by installing the TMSC attachment

One set consists of :

Drawer sides
1 set
Dynapro full extension slide
1 set
Cover cap
2 pcs
Front fixing
2 pcs
Vionaro front fixing bracket grey
1 set
Branding clip
2 pcs

Soft-close 40 kg – Plain Drawer

Soft-close 70 kg – Plain Drawer

Optional TMSC

VIONARO Drawer H249
  • 4-dimensional adjustment
  • Integrated side, height and tilt angle adjustment
  • Optional depth adjustment
  • 90° straight inside and outside
  • Slimline 13 mm wide drawer side
  • Tool-free front assembly
  • Bottom panel machining not required
  • Integrated front stabiliser for high fronts
  • Tipmatic soft close (TMSC) is possible by installing the TMSC attachment

One set consists of :

Soft-close 40 kg – Plain Drawer

Soft-close 70 kg – Plain Drawer

Optional TMSC

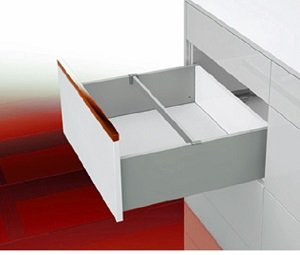

VIONARO Cross-divider
  • Cross-divider for all Vionaro drawers
  • Simple installation by mounting on the drawer side
  • Can be retrofitted at any time
  • Tool-free adjustment

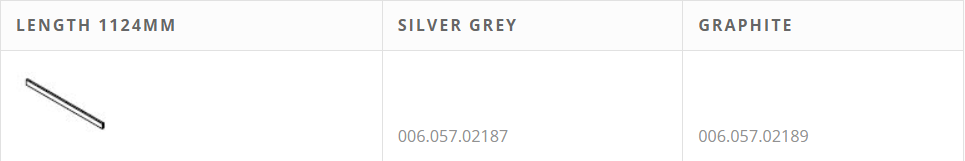

Vionaro cross-divider, can be cut to length 1124

Soft-close 40 kg – Plain Drawer

Holder for cross-divider (2)

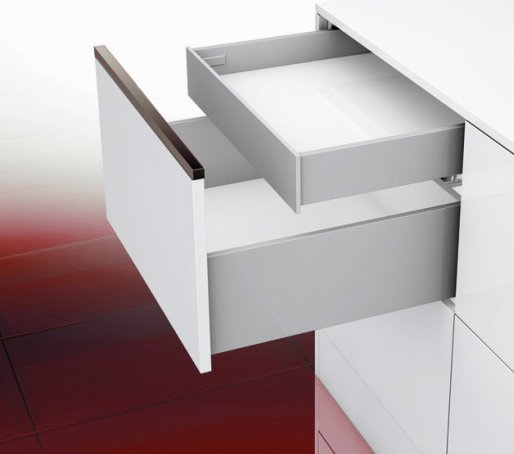

INSET PANEL F8 FOR VIONARO
  • High-quality visual design due to the smooth inside and outside surfaces
  • Same dimensions as for standard drawers (inside depth)
  • Compatible with all GRASS add-on systems
  • For rectangular railing, round railing, Duowing and glass side element applications
  • Colour of the inset panel is identical with the colour of the drawer side (White,Graphite and Silver Grey)
  • Use of GRASS dividing systems possible

Inset Panel Vionaro (1)

Vionaro cover Cap inset panel (2)

Front Fixing/Spl Screws (3)

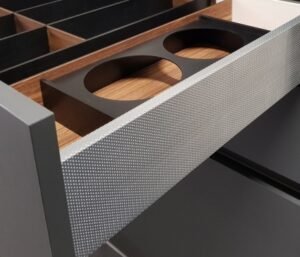

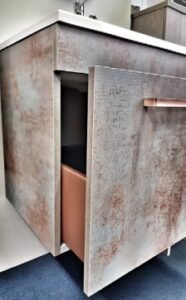

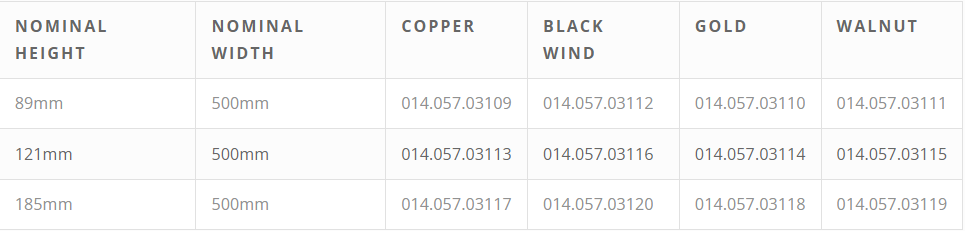

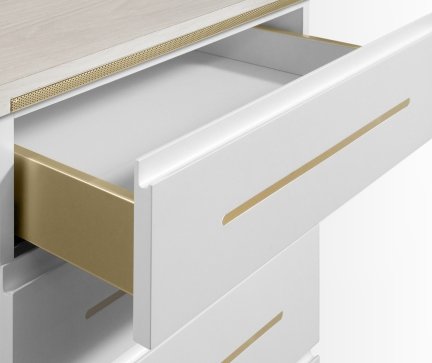

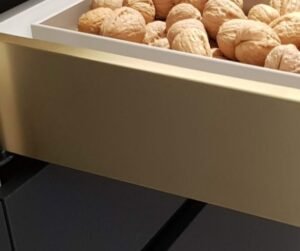

VIONARO ID
  • Aluminium anodised elements
  • Easy clip on
  • Trendy colours
  • Available in 3 heights
  • Compatible with vionaro

Inset Panel Vionaro (1)
