Dynapro

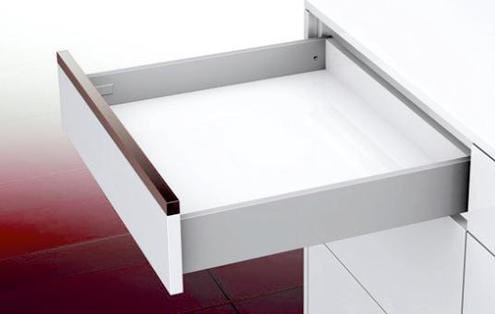

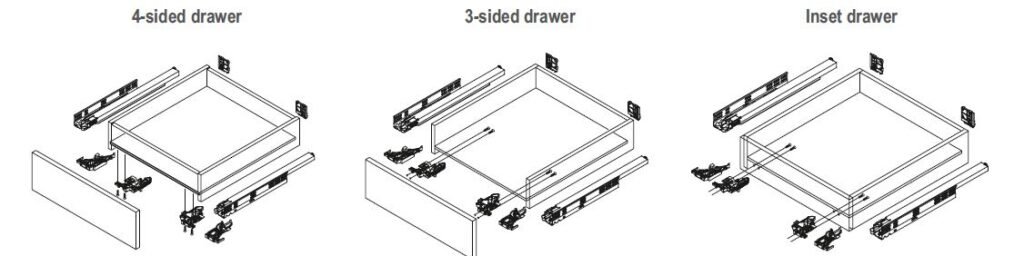

DYNAPRO
  • Slide-on Installation With Soft-close Damping System
  • Full extension drawer, synchronised 40 kg or 70 kg load capacity
  • Soft-close damping system
  • Stepless self-locking of the drawer when placed on the slide
  • Integrated, tool-free 3-dimensional adjustment facility – Height adjustment+ 3.5mm – Side adjustment ± 1.5 mm – Tilt angle adjustment + 4 mm
  • Optional depth adjustment + 3.5 mm
  • 1. Height adjustment + 3.5 mm
  • 2. Side adjustment ± 1.5 mm
  • 3. Tilt angle adjustment + 4 mm
  • 4. Front gap adjustment + 1.5 mm
NOMINAL LENGTH
40 KG
70 KG
T300
006.055.00248
-
T350
006.055.00249
-
T400
006.055.00250
-
T450
006.055.00251
-
T500
006.055.00252
006.055.00254
T550
006.055.00253
006.055.00255
T600
-
006.055.00256
T650
-
006.055.00257
FRONT FIXING
ARTICLE CODE
Dynapro 2D Front Fixing
006.001.00224
Dynapro 3D Front Fixing
006.001.00225
ARTICLE CODE
Optional: Dynapro depth adjustment
006.001.00226

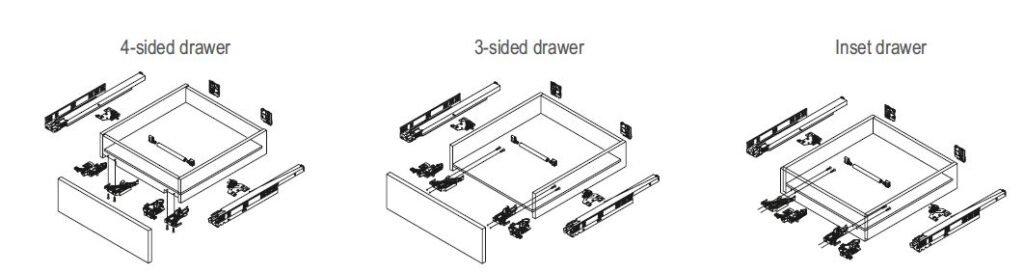

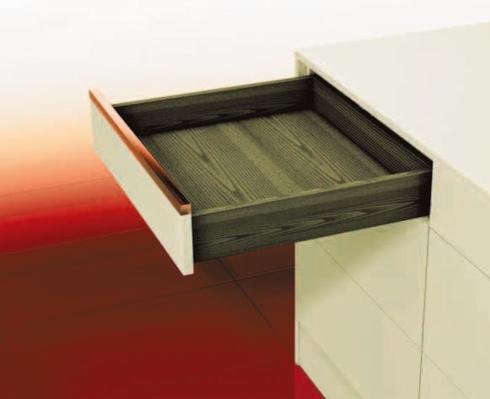

DYNAPRO TIPMATIC PLUS
  • Tipmatic full extension slide for handle-free fronts, 40 kg or 60 kg load capacity
  • Full extension drawer, synchronised 40 kg or 70 kg load capacity
  • Tipmatic element integrated into the slide – for central activation
  • Synchronisation for full-surface activation can be retrofitted
  • Modular system design

Integrated, tool-free 4-dimensional adjustment facility:

  • Height adjustment + 3.5 mm
  • Side adjustment ± 1.5 mm
  • Tilt angle adjustment + 4 mm
  • Front gap adjustment + 1.5 mm

Advantages

  • Activation by gentle tapping
  • Drawer extends fully to allow optimal access to contents
  • Reliable closing through catch function
  • Depth adjustment on both sides ensures precise front gap adjustment
LENGTH
ARTICLE CODE
300mm
006.056.00264
350mm
006.056.00265
400mm
006.056.00266
450mm
006.056.00267
500mm
006.056.00268
550mm
006.056.00269

Dynapro Front Fixing

FRONT FIXING
ARTICLE CODE
Dynapro 2D Front Fixing
006.001.00224
Dynapro 3D Front Fixing
006.001.00225
ARTICLE CODE
Synchronisation module and synchronisation lever in a set
006.050.00238
Synchronisation rod for Kb1200 S16, for cutting to length
006.050.00237

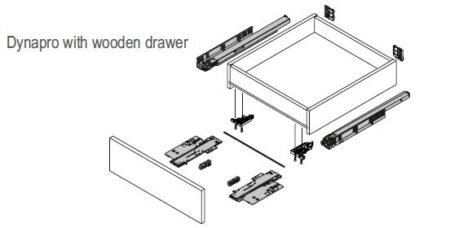

DYNAPRO TIPMATIC SOFT CLOSE

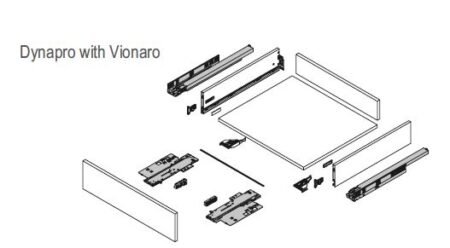

  • Can be used with Vionaro and Dynapro
  • From slide length 270 mm
  • Front gap adjustment range: -1/+3 mm
  • Minimum cabinet width 350 mm (300 mm for S16)
  • Not suitable for inset drawer catch
  • Synchronisation rod obligatory
LENGTHS
40 KG
70 KG
T300
006.055.00248
-
T350
006.055.00249
-
T400
006.055.00250
-
T450
006.055.00251
-
T500
006.055.00252
006.055.00254
T550
006.055.00253
006.055.00255
T600
-
006.055.00256
T650
-
006.055.00257
FRONT FIXING
ARTICLE CODE
Dynapro 2D Front Fixing
006.001.00224
Dynapro 3D Front Fixing
006.001.00225
ARTICLE CODE
Optional: Dynapro depth adjustment
006.001.00226
DYNAPRO BASE PANEL MOUNTING SYSTEM

Dynapro for base panel mounting

  • Full extension drawer, synchronised 40 kg load capacity
  • Soft-close damping system
  • Installation on the cabinet base or additional base panel
  • Particularly suitable for pull-out shelves, as without screw-on bracket at the side

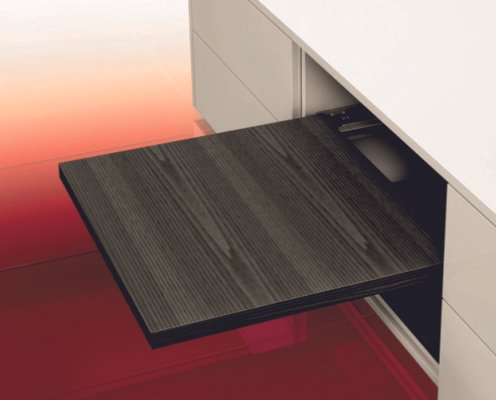

Pull-out shelf

  • Shelf holder set
  • Height adjustment + 3.5 mm
  • Optional depth adjustment + 3.5 mm
  • Stepless self-locking of the shelf when placed on the slide
  • Compatible with all Dynapro slides
PRODUCT
LENGTHS
ARTICLE CODE
400
006.002.00228
450
006.002.00229
500
006.002.00230
PRODUCT
ARTICLE CODE
006.001.00221 + 006.001.00222

DYNAPRO TEMPLATE

  • Slide-on Installation With Soft-close Damping System
  • Full extension drawer, synchronised 40 kg or 70 kg load capacity
  • Soft-close damping system
  • Stepless self-locking of the drawer when placed on the slide
  • Integrated, tool-free 3-dimensional adjustment facility – Height adjustment+ 3.5mm – Side adjustment ± 1.5 mm – Tilt angle adjustment + 4 mm
  • Optional depth adjustment + 3.5 mm
  • 1. Height adjustment + 3.5 mm
  • 2. Side adjustment ± 1.5 mm
  • 3. Tilt angle adjustment + 4 mm
  • 4. Front gap adjustment + 1.5 mm
NOMINAL LENGTH
40 KG
70 KG
T300
006.055.00248
-
T350
006.055.00249
-
T400
006.055.00250
-
T450
006.055.00251
-
T500
006.055.00252
006.055.00254
T550
006.055.00253
006.055.00255
T600
-
006.055.00256
T650
-
006.055.00257
FRONT FIXING
ARTICLE CODE
2D Front Fixing
006.001.00224
3 Front Fixing
006.001.00225
4D Front Fixing
006.001.00226
ARTICLE CODE
Dynapro Tipmatic Soft-close set unit and activator
006.050.00240
Synchronisation Rod for TMSC L= 952mm
006.050.00239

DYNAPRO TIPMATIC PLUS TEMPLATE

  • Tipmatic full extension slide for handle-free fronts, 40 kg or 60 kg load capacity
  • Full extension drawer, synchronised 40 kg or 70 kg load capacity
  • Tipmatic element integrated into the slide – for central activation
  • Synchronisation for full-surface activation can be retrofitted
  • Modular system design

Integrated, tool-free 4-dimensional adjustment facility:

  • Height adjustment + 3.5 mm
  • Side adjustment ± 1.5 mm
  • Tilt angle adjustment + 4 mm
  • Front gap adjustment + 1.5 mm

Advantages

  • Activation by gentle tapping
  • Drawer extends fully to allow optimal access to contents
  • Reliable closing through catch function
  • Depth adjustment on both sides ensures precise front gap adjustment
LENGTH
ARTICLE CODE
300mm
006.056.00264
350mm
006.056.00265
400mm
006.056.00266
450mm
006.056.00267
500mm
006.056.00268
550mm
006.056.00269

Dynapro Front Fixing

FRONT FIXING
ARTICLE CODE
Dynapro 2D Front Fixing
006.001.00224
Dynapro 3D Front Fixing
006.001.00225
ARTICLE CODE
Synchronisation module and synchronisation lever in a set
006.050.00238
Synchronisation rod for Kb1200 S16, for cutting to length
006.050.00237

DYNAPRO TIPMATIC SOFT CLOSE TEMPLATE

  • Can be used with Vionaro and Dynapro
  • From slide length 270 mm
  • Front gap adjustment range: -1/+3 mm
  • Minimum cabinet width 350 mm (300 mm for S16)
  • Not suitable for inset drawer catch
  • Synchronisation rod obligatory
LENGTHS
40 KG
70 KG
T300
006.055.00248
-
T350
006.055.00249
-
T400
006.055.00250
-
T450
006.055.00251
-
T500
006.055.00252
006.055.00254
T550
006.055.00253
006.055.00255
T600
-
006.055.00256
T650
-
006.055.00257
FRONT FIXING
ARTICLE CODE
Dynapro 2D Front Fixing
006.001.00224
Dynapro 3D Front Fixing
006.001.00225
ARTICLE CODE
Optional: Dynapro depth adjustment
006.001.00226

DYNAPRO BASE PANEL MOUNTING SYSTEM TEMPLATE

Dynapro for base panel mounting

  • Full extension drawer, synchronised 40 kg load capacity
  • Soft-close damping system
  • Installation on the cabinet base or additional base panel
  • Particularly suitable for pull-out shelves, as without screw-on bracket at the side

Pull-out shelf

  • Shelf holder set
  • Height adjustment + 3.5 mm
  • Optional depth adjustment + 3.5 mm
  • Stepless self-locking of the shelf when placed on the slide
  • Compatible with all Dynapro slides
PRODUCT
LENGTHS
ARTICLE CODE
400
006.002.00228
450
006.002.00229
500
006.002.00230
PRODUCT
ARTICLE CODE
006.001.00221 + 006.001.00222
