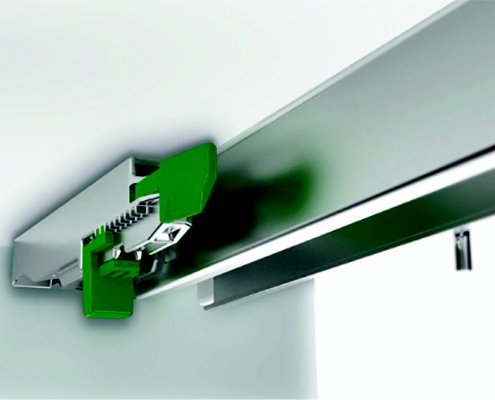

Dynamoov

Dynamoov
  • Slide-on Installation With Soft-close Damping System
  • Full-extension drawer, synchronized 30 kg load rating.
  • Continuous self locking of the drawer when pushed onto slide.
  • Integrated vertical adjustment +3.5 mm without tool.
  • With Soft-close damping system and Self-close closing system

Dynamoov Soft-Close

NOMINAL LENGTH
ARTICLE CODE
Soft Close
250mm
006.055.02185
300mm
006.055.00241
350mm
006.055.00242
400mm
006.055.00243
450mm
006.055.00244
500mm
006.055.00245
550mm
006.055.00246
600mm
006.055.00247
FRONT FIXING
ARTICLE CODE
Dynamoov plastic front fixing bracket L/ R
006.001.00221
Dynamoov Universal wire basket fixing
006.001.00223

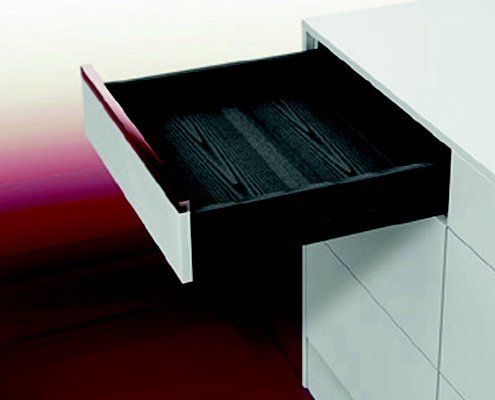

Dynamoov Tipmatic
  • The Full Extension For Handle-free Furniture Design.
  • Full extension drawer synchronised, 30 kg load capacity
  • Tipmatic ejector unit integrated into the slide – no additional work required
  • Stepless self-locking of the drawer when placed on the slide
  • Integrated height adjustment without tools + 3.5 mm
  • Factory setting of front gap 4.5 mm
  • Integrated front gap adjustment + 1.5 mm
  • The Tipmatic unit will not suffer damage when the drawer is pulled open in the conventional way
  • Pressing within the central third of the front produces optimum opening action
LENGTHS
ARTICLE CODE
300mm
006.056.00258
350mm
006.056.00259
400mm
006.056.00260
450mm
006.056.00261
500mm
006.056.00262
550mm
006.056.00263
FRONT FIXING
ARTICLE CODE
006.001.00221

DYNAMOOV TEMPLATE

  • Slide-on Installation With Soft-close Damping System
  • Full-extension drawer, synchronized 30 kg load rating.
  • Continuous self locking of the drawer when pushed onto slide.
  • Integrated vertical adjustment +3.5 mm without tool.
  • With Soft-close damping system and Self-close closing system

Dynamoov Soft-Close

NOMINAL LENGTH
ARTICLE CODE
Soft Close
250mm
006.055.02185
300mm
006.055.00241
350mm
006.055.00242
400mm
006.055.00243
450mm
006.055.00244
500mm
006.055.00245
550mm
006.055.00246
600mm
006.055.00247
FRONT FIXING
ARTICLE CODE
Dynamoov plastic front fixing bracket L/ R
006.001.00221
Dynamoov Universal wire basket fixing
006.001.00223

DYNAMOOV TIPMATIC TEMPLATE

  • The Full Extension For Handle-free Furniture Design.
  • Full extension drawer synchronised, 30 kg load capacity
  • Tipmatic ejector unit integrated into the slide – no additional work required
  • Stepless self-locking of the drawer when placed on the slide
  • Integrated height adjustment without tools + 3.5 mm
  • Factory setting of front gap 4.5 mm
  • Integrated front gap adjustment + 1.5 mm
  • The Tipmatic unit will not suffer damage when the drawer is pulled open in the conventional way
  • Pressing within the central third of the front produces optimum opening action
LENGTHS
ARTICLE CODE
300mm
006.056.00258
350mm
006.056.00259
400mm
006.056.00260
450mm
006.056.00261
500mm
006.056.00262
550mm
006.056.00263
FRONT FIXING
ARTICLE CODE
006.001.00221
